The P376 digital output slice connects the binary control signals from the Motion Coordinator to the machine’s output devices, such as relays, contactors, valves, lamps etc. at 24V dc.
All 16 outputs are sink (NPN) type and have electrical isolation. Outputs and power connection are via 2 x single-row plug-in screw terminal blocks. The Flexslice module indicates the output signal states via LEDs.
| Module current consumption (EBUS 5V) | 110mA max |
| Number of Digital Outputs | 16 (2 banks of 8) |
| Power supply requirement | 24V (+/-20%) DC |
| Load type | Resistive, inductive and capacitive |
| “ON” time | 75us (90% to 10%) |
| “OFF” time | 105us (10% to 90%) |
| Max output current | 0.5A per channel 4A per bank of 8 Outputs |
| Short−Circuit Protection | 3A typ per output |
| Over / Reverse voltage Protection | Yes |
| Mounting | DIN rail mount |

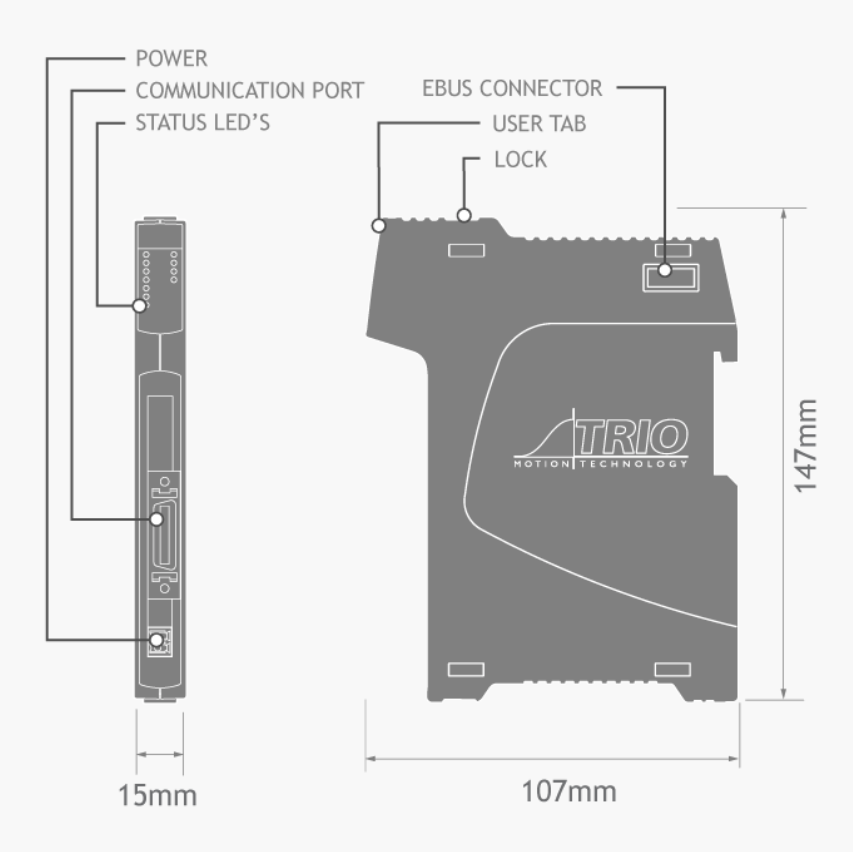

| Size (w x d x h) mm | 15 x 147 x 107 |
| Weight | 145g |
| Connectors | Push-in wiring terminals |
| EMC | EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions. |
| RoHs, CE, UL | Compliant |
