Motor Flange Table – quick reference of typical motor sizes

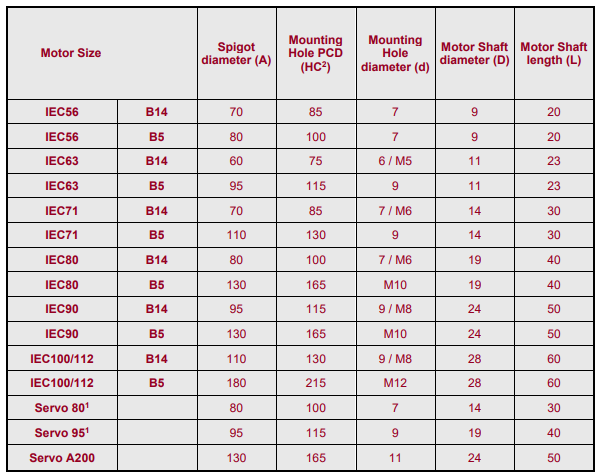

At Motor Technology we strive to supply standard product for any application you may have. Compatibility of differing motors becomes a major issue when you are looking for a replacement. To assist you in defining the motor size required, please use the table below.
This is by no means a definitive list, but represents some of the typical sizes we encounter on a daily basis:
¹ according to DIN 42950
² Hole Centre distance, also referred to as PCD or Pitch Circle Diamete
