The P377 digital input Flexslice connects 24V dc signals from devices on the machine to the binary control registers in the Motion Coordinator.
All 16 inputs are current sourcing (NPN) type and have electrical isolation. Inputs and power connection are via 2 x single-row push-in connectorss. The Flexslice module indicates the input signal states via LEDs
Module current consumption (EBUS 5V) | 100mA max |
Number of Digital Inputs | 16 (2 banks of 8) |
Power supply requirement | 24V (+/-20%) DC |
Load type | Resistive, inductive and capacitive |
“ON” Voltage | 13.7V typ |
“OFF” Voltage | 14.6V typ |
Input current | 3.5mA typ |
Input filter Cut-off (RC network) | 18KHz |
Mounting | DIN rail mount |

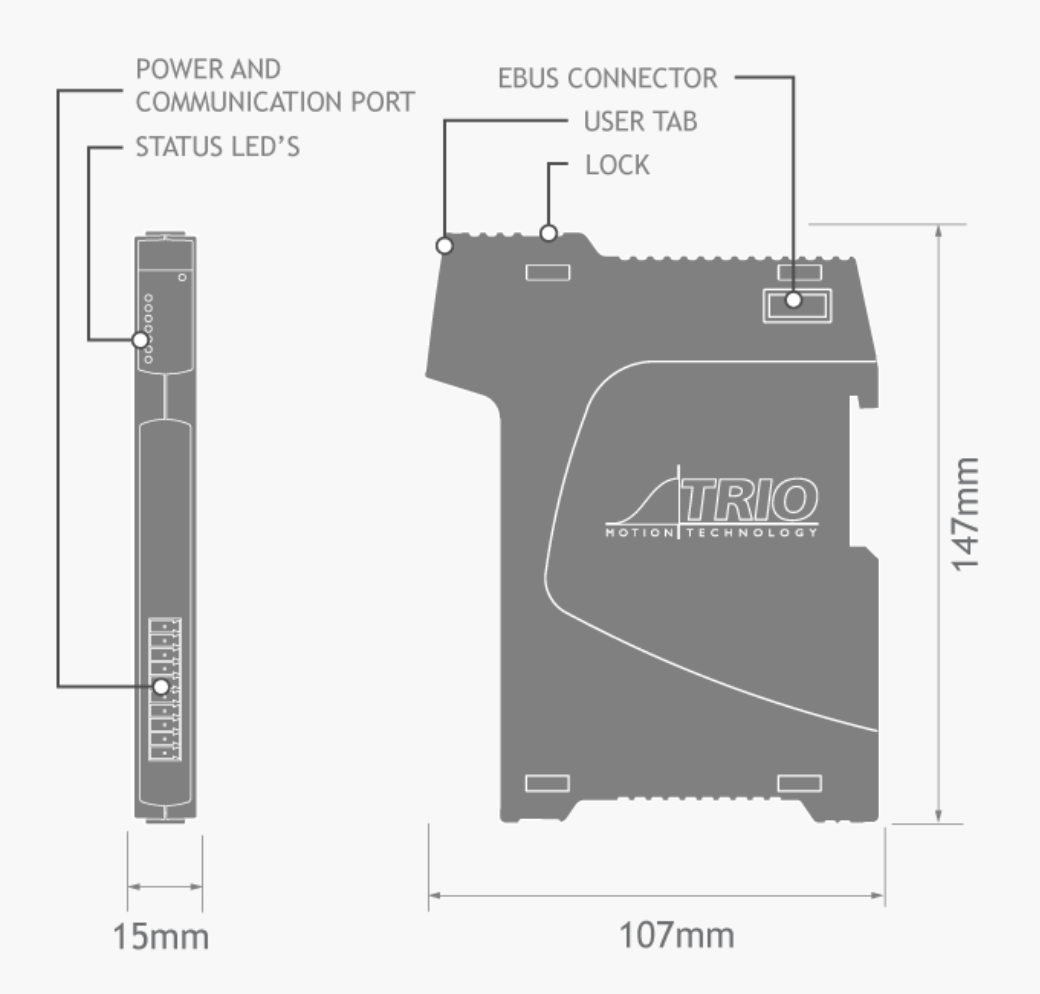

Size (w x d x h) mm | 15 x 147 x 107 |
Weight | 145g |
Connectors | Push-in wiring terminals |
EMC | EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions. |
RoHs, CE, UL | Compliant |
