The P372 digital input slice connects 24V dc signals from devices on the machine to the binary control registers in the Motion Coordinator.
All 16 inputs are source (PNP) type and have electrical isolation. Inputs and power connection are via 2 x single-row plug-in screw terminal blocks. The Flexslice module indicates the input signal states via LEDs.
| Module current consumption (EBUS 5V) | 110mA max |
| Number of Digital Outputs | 16 (2 banks of 8) |
| Power supply requirement | 24V (+/-20%) DC |
| Load type | Resistive, inductive and capacitive |
| “ON” Voltage | 11.2V typ |
| “OFF” Voltage | 11.2V typ |
| Input current | 3.5mA typ |
| Input filter Cut-off (RC network) | 18KHz |
| Mounting | DIN rail mount |

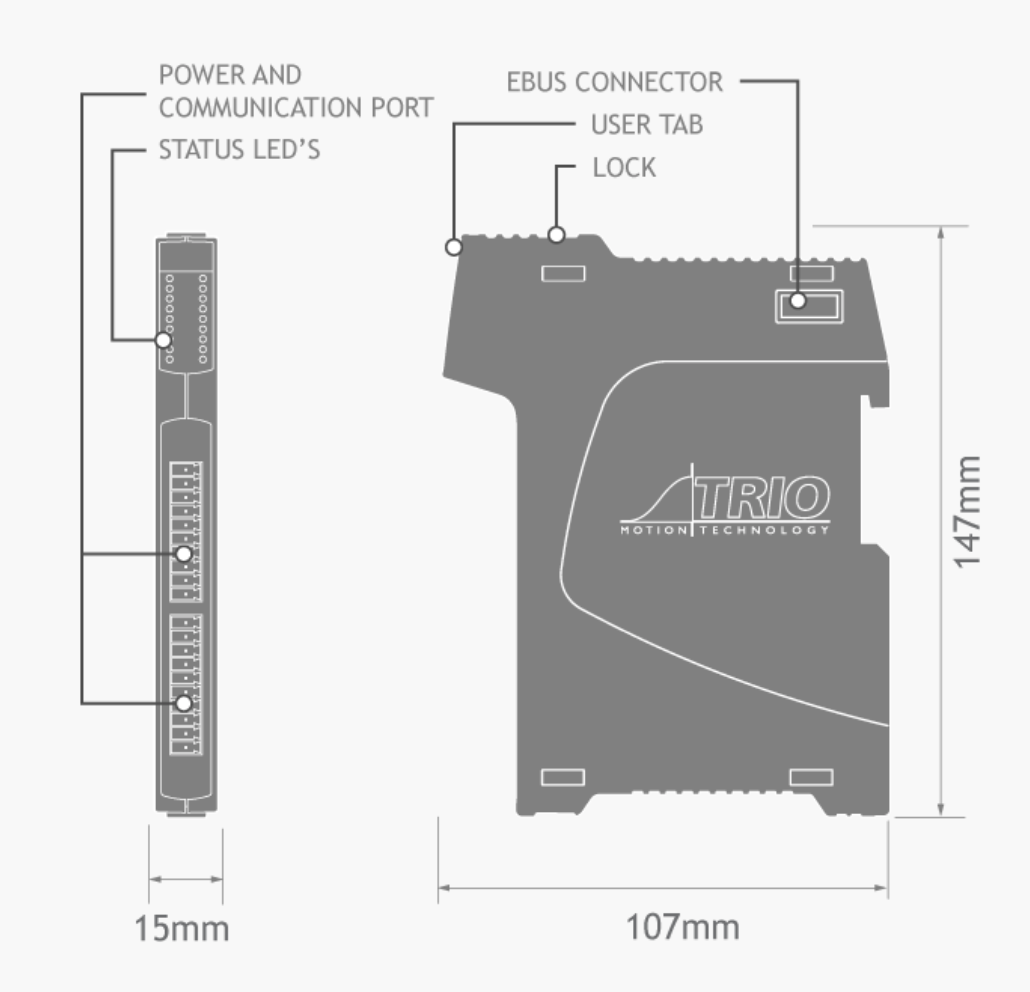

| Size (w x d x h) mm | 15 x 147 x 107 |
| Weight | 145g |
| Connectors | Push-in wiring terminals |
| EMC | EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions. |
| RoHs, CE, UL | Compliant |
