The P375 Flexslice 3 Axis Step Pulse Module controls up to 3 Stepper motors with Pulse/Direction/Enable or Pulse/Direction/Registration signals for each axis.
It supports incremental encoders. If configured for stepper / pulse output an axis can be pulse+direction or quadrature simulated encoder output. A single MDR connector provides a reliable shielded 26 way connector for high speed signals. The P375 is compatible with most high resolution microstep drives..
| Module current consumption (EBUS 5V) | 150mA max |
| Module current consumption (24V) | 90mA max |
| Max Step Rate | 8MHz pulse count |
| Step / Pulse Width | Pulse Control or Square Wave |
| Max Enc Rate | 8MHz encoder count |
| Step/Enc Port | MDR Connector 0…5V |
| Encoder Power Output (5V) | 150mA max (Shared Between 3 Axes) |
| Max Axes | 3 (software configurable) |
| WDOG Output | Yes |
| Field Programmable | Yes |
| Mounting | DIN rail mount |

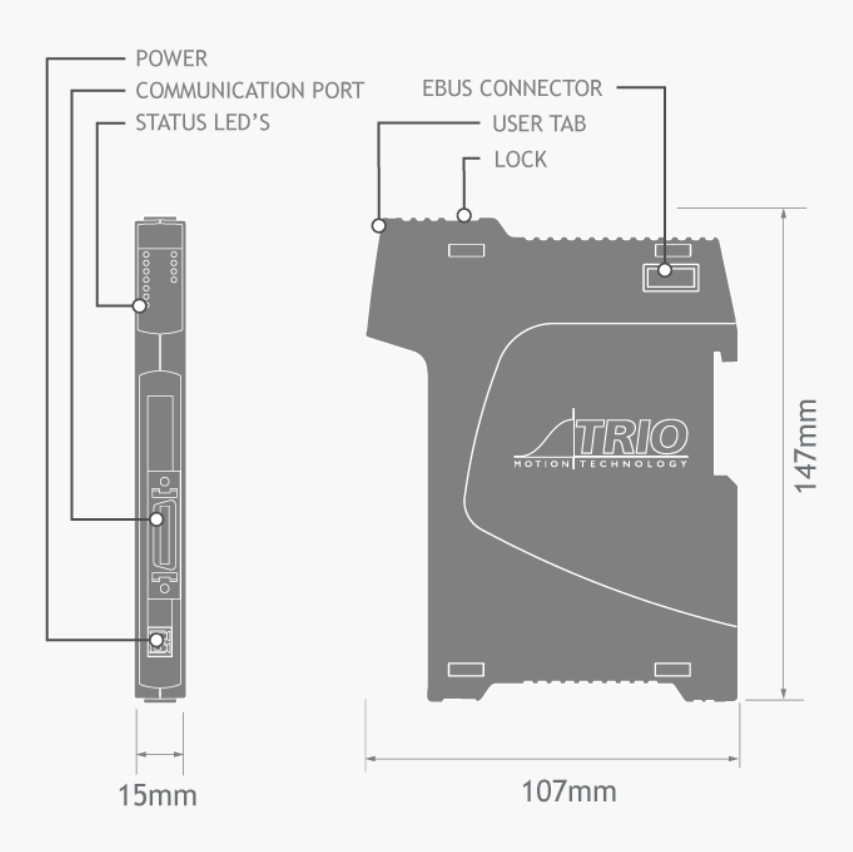

| Size (w x d x h) mm | 15 x 147 x 107 |
| Weight | 145g |
| Connectors | Push-in wiring terminals |
| EMC | EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions. |
| RoHs, CE, UL | Compliant |
