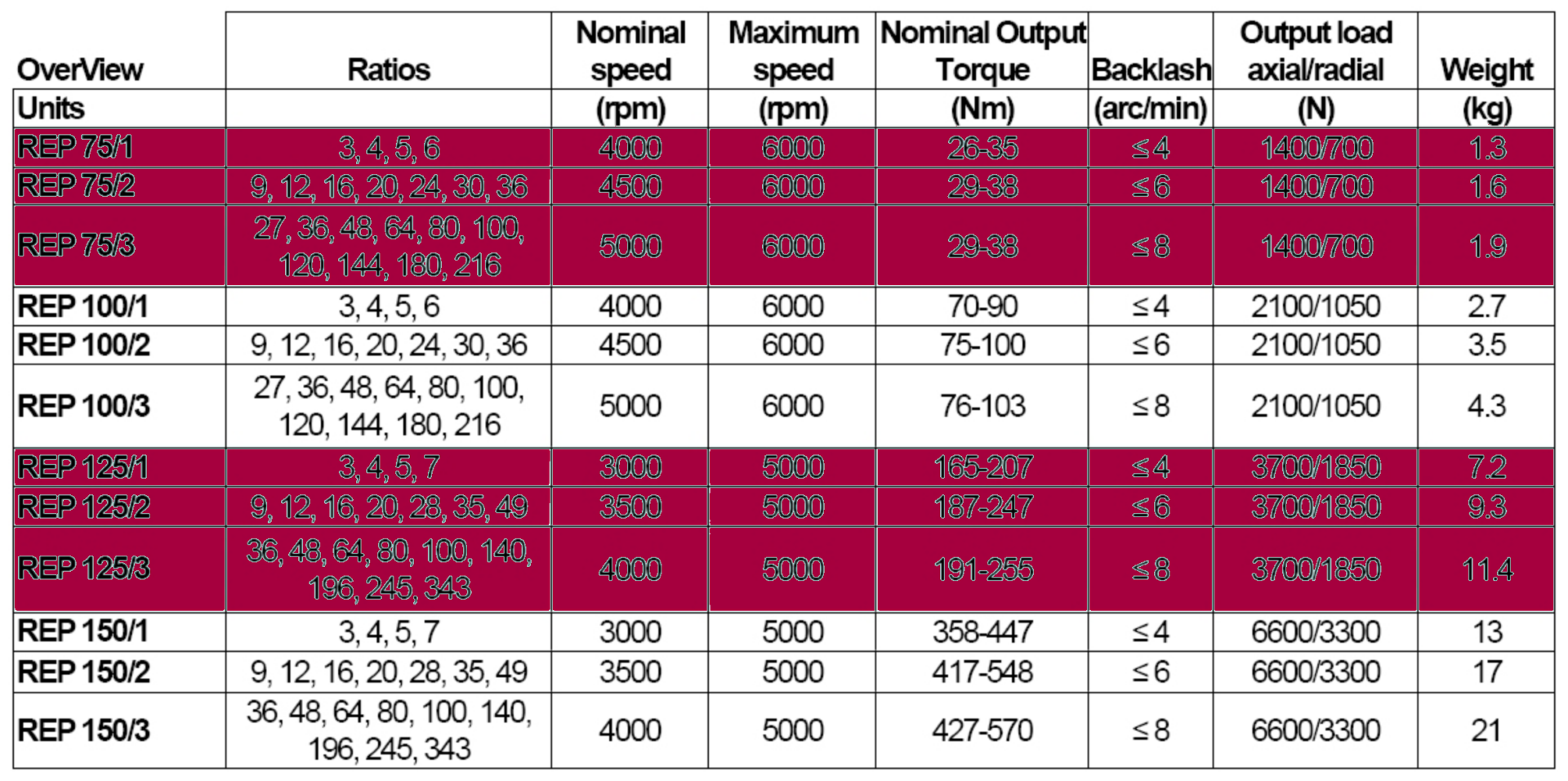

REP gearboxes are built for servo applications where high demands are made on precision, performance and reliability. The gearboxes are suitable for intermittent input speeds up to 6000rpm and offer high efficiency. REP gearboxes offer low backlash down to ≤ 4 arc-min.
Features
- Highly dynamic
- Low backlash and intertia
- High efficiency: 1 stage – 96% / 2 stage – 93% / 3 stage – 91%
- High torsional stiffness
- High overload capability
- Minimal sensitivity to shock
- Ratios mathematically accurate
- Available with keyed or clamp input
Options
- Various output shaft/flange options
- Key / key-way
- Specials
