The Trio CAN8 Relay module offers a compact DIN rail mounted relay output expansion capability for all Trio Motion Coordinators.

Up to 16 P327 modules may be connected to the CAN network which may be up to 100m long.

This provides 128 distributed low power relay channels at up to 30Vdc or 49Vac. All output points are Volt-free contacts and are completely isolated from the CANbus. P327

Outputs8 relays 30Vdc / 49Vac
Configuration 4 x NO+NC contacts and 4 NO only contacts
Output CapacityMaximum switching power per contact: 62.5 VA (ac), 24W (dc)
IndicatorsIndividual status LED’s
Address Setting Via DIP switches
Power Supply 24V / 1.5W
MountingDIN rail mount

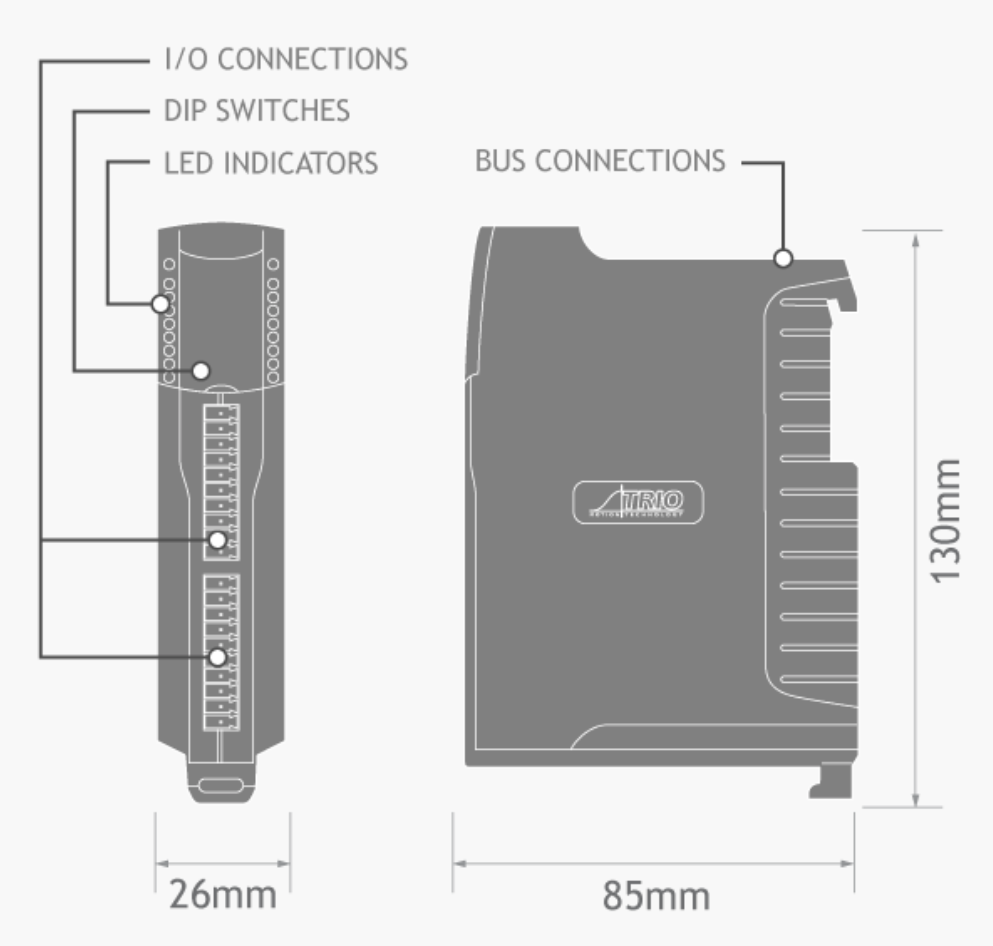

Size26mm wide x 85mm deep x 130 mm high
CAN500kHz, Up to 256 expansion output channels
EMCEN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions.
CAN protocolTrio CANI/O or CANopen DS401
RoHs, ULCompliant
